Sale!

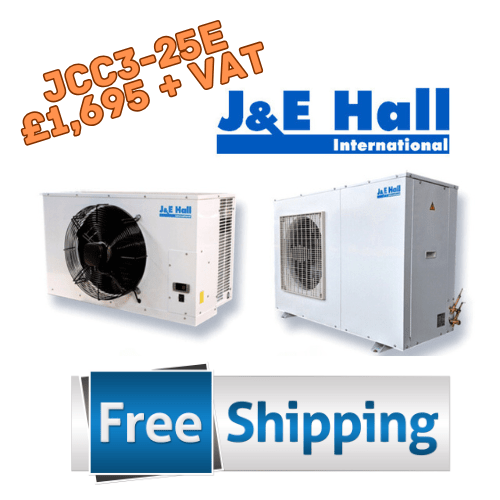

DescriptionJE Hall JCC3-25E Cellar Cooling J E Hall – J6LC26CV1 (condensing Unit) – JCC3-25E (Evaporator) Max cubic area Above Ground 25M3 Max cubic area below Ground 45M3 Maximum Pipe Run 25M If pipe run between 15M >25M use fan speed controller Maximum Pipe Rise 5M (Maximum Pipe Run must include Rise) Outside Noise Level 27 dB(A) 16 Amp single phase.Dimensions: JCC3-25E (Internal): Width – 865mm Depth – 372mm Height – 489mm. Unit Weight 31Kgs Packing weight 37kgs J5LC15C (External): Width – 700mm Depth – 250mm Height – 541mm. Unit Weight 30Kgs Packing Weight 31kgsBrewery specification 6 fins per inch evaporator coil Galvanised mild steel casing with polyester powder coating Electronic controller Low pressure safety switch Acoustic insulation on outdoor unit and compressor 3/4” BSP drain fitting on indoor unit The JE Hall JCC3-25E Cellar Cooling can operate down to 4°C and up to 16°C Therefore suitable for a wide range of applications from cellar cooling, wines, flowers, fruit & vegetables etc. Suitable for pipe runs up to 25 metres Unit does not come pre charged with R448/R449
