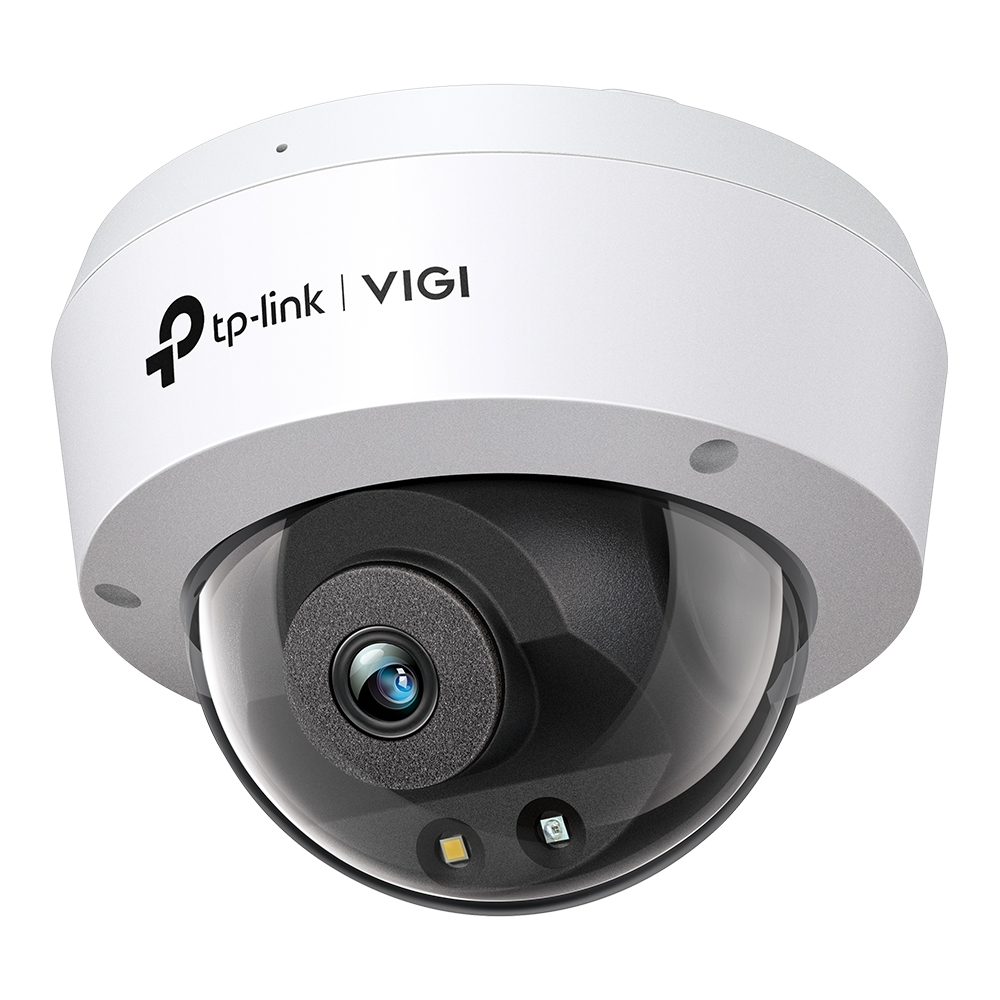

CAMERAImage Sensor1/3” Progressive Scan CMOSShutter Speed1/3 to 1/10000 sSlow ShutterYesMinimum IlluminationColor: 0.005 Lux; 0 Lux with IR/White LightDay/Night MechanismIR Cut FilterDay/Night SwitchUnified/ Scheduled/ AutoLENSTypeFixed Focal LensFocal Length2.8 mm/4 mmAperture2.8 mm: F1.6 4 mm: F1.6FOV2.8 mm: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°4 mm: Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°Lens MountM12DORI Distance2.8 mm: Detect: 64 m (209 ft) Observe: 27 m (87 ft) Recognize: 13 m (42 ft) Identify: 6 m (21 ft)4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)Angle Adjustment (Manual)RangePan: 0° to 355° Tilt: 0° to 75°ILLUMINATORIR LEDQuantity: 1 Range: 30m Wavelength: 850nmWhite LEDQuantity: 1 Range: 30mIlluminator On/Off ControlAuto/Scheduled/Always on/Always offVIDEOMax. Resolution2560 × 1440Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 2560×1440,2304×1296, 2048×1280, 1920×1080, 1280×720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 640×480,352×288, 320×240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.Bit Rate ControlCBR, VBRVideo CompressionMain Stream: H.265 /H.265/H.264 /H.264 Sub-Stream: H.265/H.264H.264 TypeHigh ProfileH.264 Main Stream SupportedH.265 TypeMain ProfileH.265 Main Stream SupportedVideo Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 KbpsImageImage SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)Image EnhancementBLC/3D DNR/HLC/SmartIRWide Dynamic RangeDWDRSNR≥ 52 dBImage Parameters SwitchYesPrivacy MaskUp to 4 MasksROI1 RegionOSD SettingYesAUDIOAudio CommunicationN/AAudio InputYesAudio OutputN/AAudio CompressionYesAudio Sampling Rate8KHzEnvironment Noise FilteringYesAudio Bit Rate64 Kbps(G.711 alaw)NETWORKProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARPONVIFYesAPIOpen Network Video Interface (Profile S)Simultaneous Live View3 Main Streams & 3 Sub-StreamsClientVIGI App, VIGI Security Manager, Web UIWeb BrowserGoogle Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and aboveCloudYesSecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest AuthenticationALARM AND EVENT MANAGEMENTSmart Event• Area Intrusion Detection • Line-Crossing Detection • People Detection • Vehicle Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Abnormal Sound DetectionBasic Event• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login)Alarm LinkageWhite Light Flashing, Message PushINTERFACESNetwork Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoEAlarmN/AReset ButtonYesPowerDC Power PortOn-board StorageBuilt-in Memory Card Slot, Support MicroSD Card, Up to 512 GBBuilt-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the CameraBuilt-in SpeakerN/AAudioN/AGENERALOperating Temperature-30–60 °CStorage Temperature-40–60 °COperating Humidity95% or Less (Non-Condensing)Storage Humidity95% or Less (Non-Condensing)Package ContentVIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting AccessoriesMaterialPlasticNet Weight0.28 KgGross Weight0.46 KgPower Supply12V DC ± 5%, Max. 5.4 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 6 WProtectionIP67, IK10Product Dimensions (L x W x H)115× 86× 115 mmCertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC รหัสสินค้า: VIGI C240(4mm) หมวดหมู่: IP Camera
