Sale!

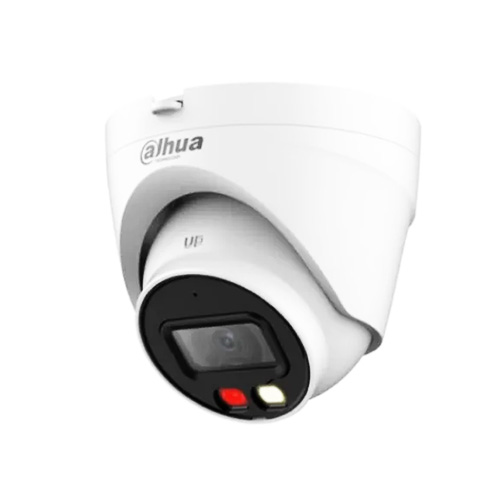

Description Camera Image Sensor 1/2.8″ CMOS Resolution 1920 (H) × 1080 (V) Shutter Speed Auto/Manual 1/3 s–1/100,000 s Day & Night Auto(ICR)/Color/B/W Min. Illumination 0.005 [email protected] (Color,30 IRE)0.0005 [email protected] (B/W,30 IRE)0 lux (Illuminator on) SNR (dB) >56 dB Angle Adjustment Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm;3.6 mm Aperture F1.6 Field of View 2.8 mm: H: 104°; V: 55°; D: 124° 3.6 mm: H: 88°; V: 44°; D: 105° Iris Type Fixed Close Focus Distance 2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft) DORI Distance 2.8 mm: 44.1 m(144.69 ft), 17.7 m(58.07 ft), 8.8 m(28.87 ft), 4.4 m(14.44 ft) 3.6 mm: 58.9 m(193.24 ft), 23.6 m(77.43 ft), 11.8 m(38.71 ft), 5.9 m (19.36 ft) Illuminator IR LEDs 1 (IR LED); 1 (Warm light) IR Distance Up to 30 m (98.43 ft) (IR LED) Up to 30 m (98.43 ft) (Warm light) Illuminator Control Auto;Manual Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) Resolution 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main Stream 1920 × 1080@(1–25/30 fps) Sub Stream 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Smart Codec Smart H.265 ; Smart H.264 Video Frame Rate Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR DWDR Gain Control Auto;Manual Noise Reduction 3D NR Region of Interest (ROI) Yes (4 areas) Mirror Yes Privacy Masking 4 areas Audio Audio Compression G.711a; G.711Mu; PCM; G.726 Built-in Microphone Yes, built-in Mic Storage Network Storage FTP Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P Interoperability ONVIF (Profile S; Profile T); CGI API Yes User/Host 6 (Total bandwidth: 24 M) Client iOS;Android Web Browser IE; Chrome; Firefox App Smart PSS Lite; DSS; DMSS Interface Network Interface RJ-45 (10/100 Base-T) Alarm General Alarm Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception Environment Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F) Operating Humidity ≤95% Storage Temperature –40 °C to 60 °C (–40 °F to 140 °F) Storage Humidity ≤95% Water Protection IP67 Power Power Supply 12 VDC/PoE (802.3af) PoE Standard 802.3af Power Consumption Basic: 1.8 W (12 VDC); 2.3 W (PoE) Max. (H.265 intelligence on WDR illuminator intensity): 4.5 W (12 VDC); 5.6 W (PoE) Physical Information Casing Material Inner core: Metal plastic Cover: Plastic Dimension 100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″) Weight Net Weight: 0.33 kg (0.73 lb) Gross Weight: 0.45 kg (0.99 lb) Warranty Information Warranty 1 Year
